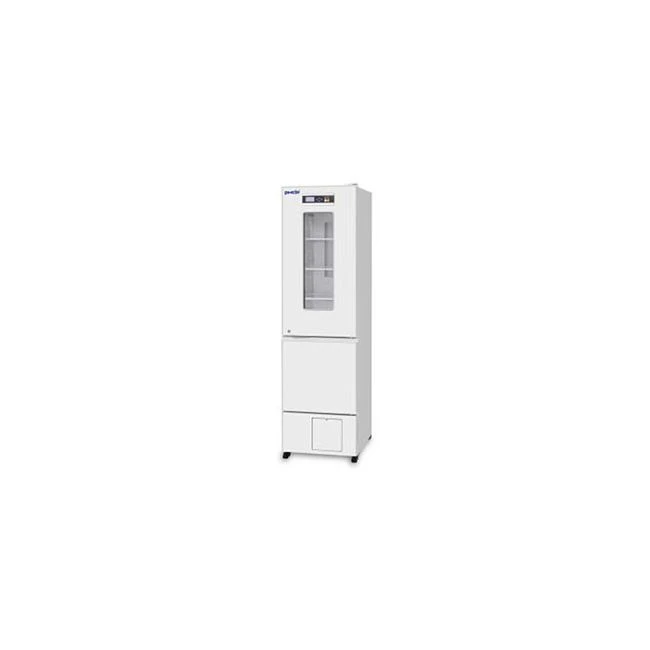

Follett REFFZR9-GS 6.3 Cu.Ft Pharmaceutical Refrigerator with Freezer

Details

The PHCbi brand pharmaceutical refrigerator with freezer offers a complete storage solution in one cabinet. The combines high-performance refrigeration with a -30°C freezer in a small footprint for flexible, reliable and convenient vaccine and biological material storage. Refrigerated and frozen products can be stored within a single footprint. Natural refrigerants minimize environmental impact for a sustainable storage solution.

Features:

Excellent Uniformity

The refrigerator and freezer compartments provide excellent uniformity throughout. Temperatures remain stable wherever products are stored, even in a loaded chamber. The refrigerator is engineered to prohibit inadvertent freezing of temperature sensitive vaccines.

Independent Refrigeration Systems

The single cabinet includes two independent temperature controlled chambers with separate refrigeration systems. The refrigerator section operates on a high efficiency inverter compressor running at variable speed upon demand to reduce energy consumption. New EPA SNAP compliant refrigerants help meet facility sustainability goals and lower global environmental impact.

Security Control and Monitoring

The microprocessor controller and softkey interface are door mounted at eye level. An OLED alphanumeric display provides convenient, secure user management. Refrigerator and freezer temperature can be displayed simultaneously or individually. Minimum/maximum temperatures are automatically displayed every 24 hours. All alarm conditions are displayed and recorded. Data transfer is available through a USB port.

Temperature Distribution

Temperature uniformity is maintained at all storage levels even at full load conditions. This provides even, horizontal airflow across the solid adjustable glass shelves at all shelf levels to assure optimum temperature uniformity under full load conditions.

Natural Refrigerants

Hydrocarbon refrigerants help achieve facility sustainability objectives by minimizing any environmental impact without compromising cooling performance, ambient tolerance and recovery speeds following door openings.

Easy to Use, Intuitive Operation

Adjustable audible and visual alarms are standard, along with integrated system diagnostics and predictive performance supervision. The password-protected control panel provides security and minimizes risk of accidental changes in setpoint.

Slim Profile Cabinet Design

The space saving, ergonomic design comes in a solid door model REFFZR9-GS with a triple-paned viewing window. The compact footprint permits easy installation in narrow aisles and hallways for greater flexibility. Independent key lock increases security on the refrigerator and freezer compartments.

Maximized Storage

This model feature a spacious capacity within the overall small footprint. The refrigerator compartment has an effective capacity of 179L and includes three adjustable, tempered glass shelves. The solid shelf construction eliminates tipping of bottles and vials. A rear wall LED light is included for product viewing. The freezer compartment has an effective capacity of 80L and includes one hard steel wire polyethylene coated shelf.

Accessories
  • Black-out Panel for photosensitive product MPR-25BP-PW
  • Battery kit for power failure alarm MPR-48B2-PW
  • Analog temperature transmitter MTR420MAC
Write a review
In stock
SKU
CESS-861066-00001
MPN
REFFZR9-GS
Features include: High-performance refrigeration with a -30°C freezer, microprocessor controller, softkey interface are door mounted at eye level
$11,301.82
Specifications
DiscontinuedNo
Additional Specifications:
  • Product Type: Refrigerator
  • Dimensions: 20" (L) x 25.1" (W) x 71.2" (H)
  • Interior Dimensions: 16.9" (L) x 20.3" (W) x 35.5" (H)
  • Interior Freezer Dimensions: 15.3" (L) x 19.7" (W) x 16.2" (H)
  • Refrigerator Volume: 6.3 Cu. Ft.
  • Freezer Volume: 2.8 Cu. Ft.
  • Net Weight: 210 lbs
  • Performance
    • Cooling Performance (Refrigerator): +2 to +14 (max +2) °C
    • Cooling Performance (Freezer): -30 to -20 (max -30) °C
    • Temperature Setting Range (Refrigerator): +2 to +14 °C
    • Temperature Setting Range (Freezer): -30 to -20 °C
  • Control
    • Controller: Microprocessor, Softkey Data Entry, Password Protected
    • Display: White Graphic OLED
    • Temperature Display: Select Refrigerator, Freezer or Concurrent
    • USB Logging Function: Logs 3 Months of Data at 1 Minutes Intervals
  • Refrigeration
    • Compressor (Refrigerator): (1) 120 W, Inverter
    • Compressor (Freezer): (1) 120 W
    • Natural Refrigerant (Refrigerator): HC R-600a
    • Natural Refrigerant (Freezer): HC R-290
  • Construction
    • Exterior and Interior Material: Colored steel / ABS Resin (REF) | Painted Steel (FRZ)
    • Insulation Material, SNAP Compliant: Polyurethane Foam-in-Place, CFC Free
    • Key Lock: (1) Standard, Locks Top Refrigerator and Lower Freezer
    • Number of Shelves: 3
    • Shelves (Refrigerator): 3 Tempered Glass, Adjustable
    • Shelves (Freezer): 1 PE Coated Wire
    • Shelf Dimensions: 14.6" (L) x 14.96" (W)
    • Max. Load Per Shelf (Refrigerator): 44 lbs
    • Max. Load Per Shelf (Freezer): 22 lbs
    • Max. Load - Total (Refrigerator): 132 lbs
    • Max. Load - Total (Freezer): 66 lbs
    • Access Port: (1) Back Wall Left 1.2", (1) Lower Back Middle 1.2"
    • Casters: 4 (Plus 2 Leveling Feet on Front Base)
  • Alarms (V=Visual, B=Buzzer, R=Remote Alarm Contacts, A=Adjustable, D=Settable Delay, L=Logged)
    • High and Low Temperature: V-B-R-A-D-L
    • Power Failure: R
    • Power Failer With Optional Battery Kit: V-B-R-L
    • Fan, Compressor, Inverter: V-B-R-L
    • Sensor Error: V-B-L
    • Door Open: V-B-A-D
    • Freeze Warning: V-B-R-L
    • LED Chamber Lighting: Adjustable On/Off/On Door Opening (Refrigerator Only)
    • Min/Max Temperature Logging: Included
    • Remote Alarm Contact: Yes
  • Electrical and Noise Level
    • Power Supply: 115V, 60Hz, 1Ø, NEMA 5-15P, Requires NEMA 5-15R Receptacle
    • Noise Level: 40 dB (A)
